From Request to DICOM: How I Got My Medical Imaging Files

Over the last couple of years I have had more medical imaging than I ever expected. I wanted the actual files, not just reports or screenshots, and I learned that getting them is possible but not always obvious.

I have been fascinated by medical imaging for a long time. The first MRI I had as a teenager felt like science fiction turned real. Since then, every time imaging came up in care, I wanted access to the underlying data itself.

HIPAA is Also About Access

Most people hear HIPAA and think only about privacy. Privacy is central, but the rule also includes a patient right of access to your own records, with limited exceptions. That includes imaging records, not only text reports.

Helpful overview: HHS guidance on the HIPAA Right of Access.

• Covered entities generally respond within 30 days, with one permitted extension in many cases.
• Fees are limited to reasonable, cost-based categories.
• You can often direct records to a third party when needed.

My Kaiser Request Timeline

I requested records through Kaiser Permanente (Northern California). I cannot speak for all regions, but this is what happened in my case.

• Jan 18, 2026: Submitted the request online.
• Immediately: Received an automated confirmation and tracking ID.
• About a week later: Received the document side first (reports and summaries).
• Later: Received a separate update for imaging files.
• Feb 20, 2026: Imaging arrived on physical media.

Public Kaiser entry point: Request medical records (NorCal).

The Big Gotcha: Reports and Images May Be Separate

The most important lesson was that "records" and "imaging" can move through different workflows. In my case, reports arrived first and DICOM images arrived later.

If you specifically want imaging files, be explicit in your request:

• "All imaging DICOM files for [date range]."
• "Include imaging studies, not only radiology reports."
• "Electronic delivery preferred; portable media is acceptable."

What Arrived

The disc included thousands of files in a DICOM-style structure, along with bundled viewer software. Imaging datasets are much larger and more complex than most patient-facing records.

Technically, it felt more like receiving a dataset than receiving ordinary pictures. Humanly, it felt meaningful: access to my own data, on my own machine, at my own pace.

What the Inventory Actually Looked Like

Without getting into private identifiers, I ran a metadata-only inventory on the DICOM export. The headline is that this was not a small attachment; it was a real imaging dataset with structure, volume, and history.

• Total files: 9,327 files in the export folder, with 9,325 valid DICOM objects.
• Total size: About 1.4 GiB of imaging data.
• Scope: 10 studies and 106 series in a single patient export.
• Date spread: Exams spanning 2024 to early 2026.
• Modalities represented: mostly MRI, plus CT and a smaller number of CR/RF/derived objects.
• Body regions reflected in metadata: brain, cervical spine, and pelvic-focused studies.

If you have never looked at a DICOM export before, this is the part that surprised me most: it behaves more like a technical archive than a photo album. You get studies, series, and thousands of image instances with acquisition metadata, not just a handful of snapshots.

What I Did Next

• Backed up the raw imaging data.

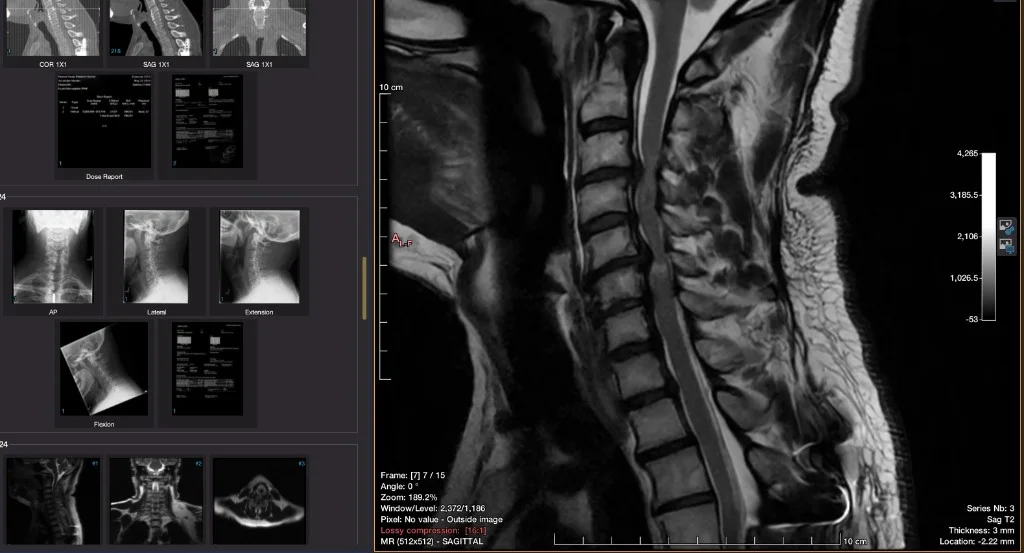

• Created a convenience export for easier browsing.
• Kept the original dataset intact in long-term storage.

Tips if You Want Your Own Imaging Data

• Ask for images explicitly, not only "records."
• Use the word DICOM in your request.
• Expect separate deliveries in some systems.
• Be ready for physical media if download is not offered.
• Save delivered files promptly and back them up.
